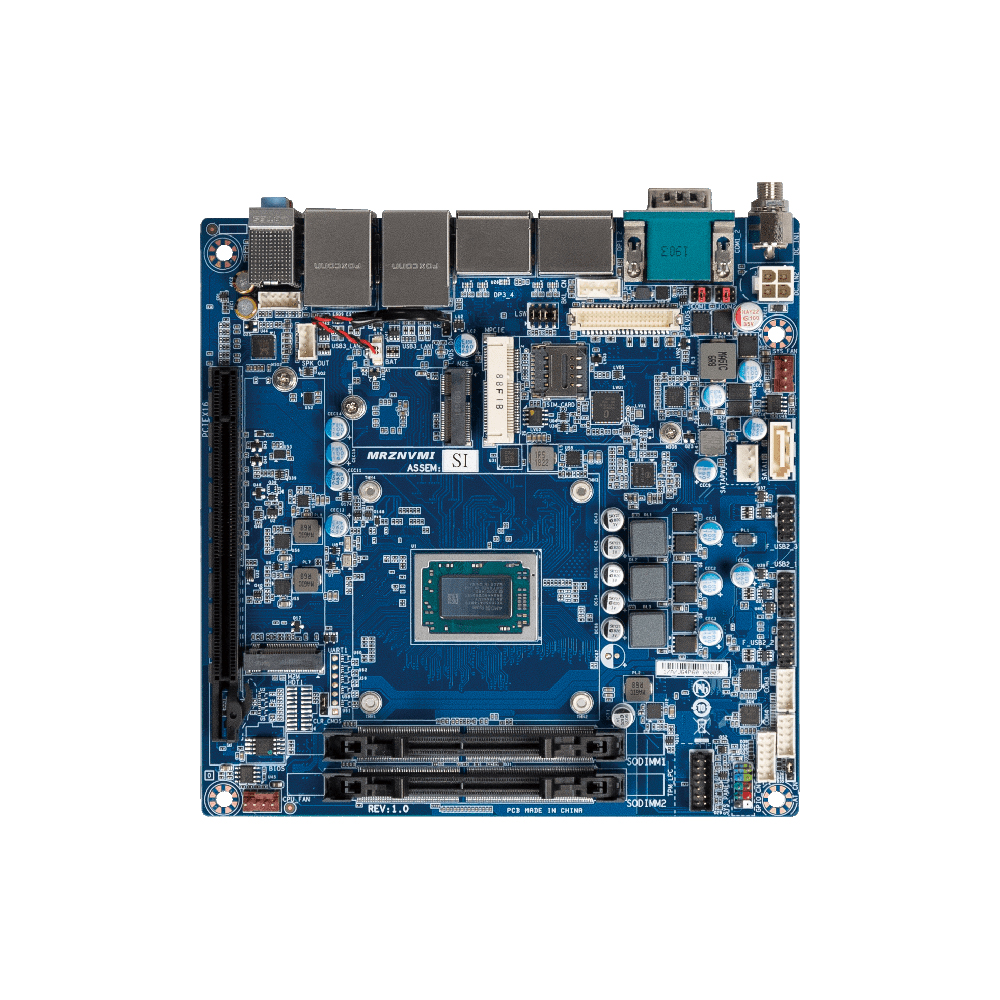

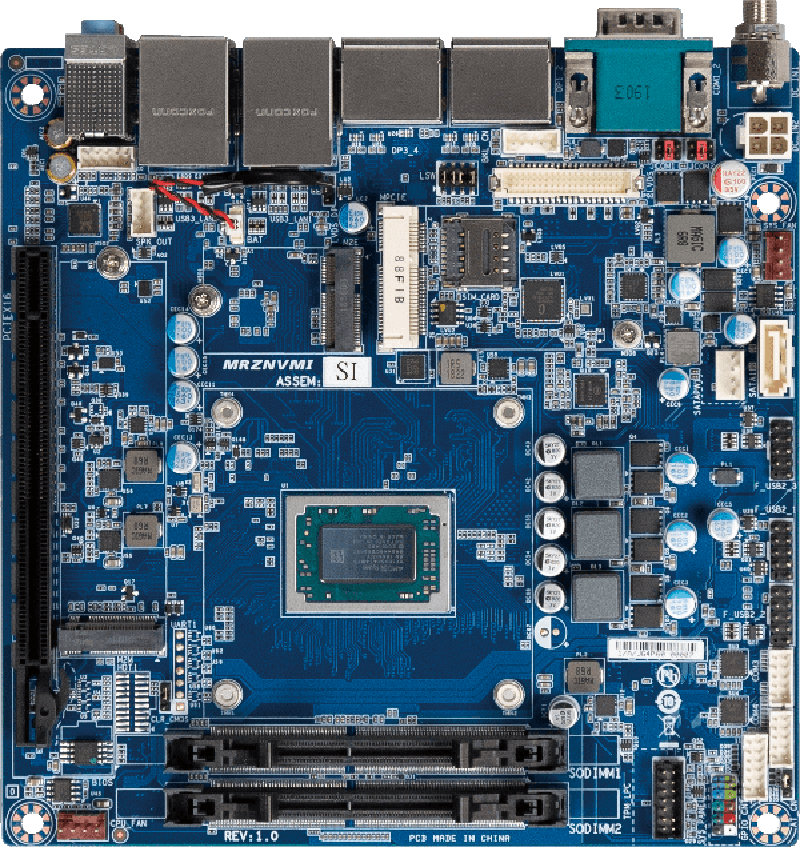

GIGAIPC mITX-1605A
  • Mini-ITX Embedded Motherboard with AMD Ryzen™ V1605B Embedded Processor,
  • Dual Channel DDR4 memory, PCIe, 4 x COM, 1 x SATA 6Gb/s, 10 x USB
spec
Ordering Information
Fan version: 9MRZNVMIMR-SI (Box packing)
Key Features
  • Mini-ITX form factor
  • AMD Ryzen™ V1605B Embedded Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x GbE LAN Ports
  • 1 x SATA 6Gb/s Port
  • 4 x DP 1.4, LVDS (Switch from DP) ports for multiple display
  • 1 x PCIe x16 (x8 signal) expansion slot
  • 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
  • 2 x COM Ports (RS-232)










​





Specification


Form Factor

Mini-ITX

170W x 170D(mm)

CPU

AMD Ryzen™ V1605B Embedded Processor

14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6GHz

TDP 25W

Socket

1 x FP5 BGA

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB

Support Dual channel DDR4 2400 MHz memory modules

Ethernet

2 x GbE LAN Ports (Realtek® RTL8111HS)

Video

Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:

4 x DP ports, supporting a maximum resolution of 4096x2160 @60Hz

1 x LVDS port, supporting a maximum resolution of 1080P (switch from DP)


(4 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x SATA 6Gb/s Port

Expansion Slots

1 x PCIe x16 (Gen3 x8)

1 x 2280 M.2 M-Key (SATA 6Gb/s)

1 x 2230 M.2 E-Key

1 x Full-size Mini PCIe with SIM slot

Internal I/O

1 x 4-pin ATX power connector

1 x SATA power connector

1 x CPU fan header

1 x System fan header

1 x Front panel header

1 x Front panel audio header

1 x 2W Speaker out header

6 x USB 2.0 headers

2 x COM headers (RS-232)

1 x GPIO (8 bits) & SMBUS header

1 x Backlight Control header

1 x LVDS/ DP jumper

1 x AT/ATX mode select jumper

1 x Clear CMOS jumper

Rear I/O

3 x Audio Jacks (Line in, Line out, Mic in)

2 x COM Ports (RS-232/422/485 & RI/5V/12V)

4 x Display Ports

2 x RJ45 LAN Ports

4 x USB 3.2 Gen 1

1 x DC Jack (+12V~24VDC)

TPM

1 x TPM header

OS Compatibility

Windows 10 (x64)

Operating Properties

Operating temperature: 0°C to 60°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Packing ContentCarton size: 556 x 476 x 244 (mm)
Packing Capacity: 10pcs

Single Box size: 206 x 223 x 105 (mm)
Single Box weight: Approx. 0.75kg

Including:
IO Shield x 1 (P/N: 12AIO-MRZNV0-00R)
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Fansink x 1 (P/N: 12SF2-01A077-00R)
Order Information

Fan version: 9MRZNVMIMR-SI (Box packing)

Optional Kit

TPM 2.0 module: 9CTM000NR-00
