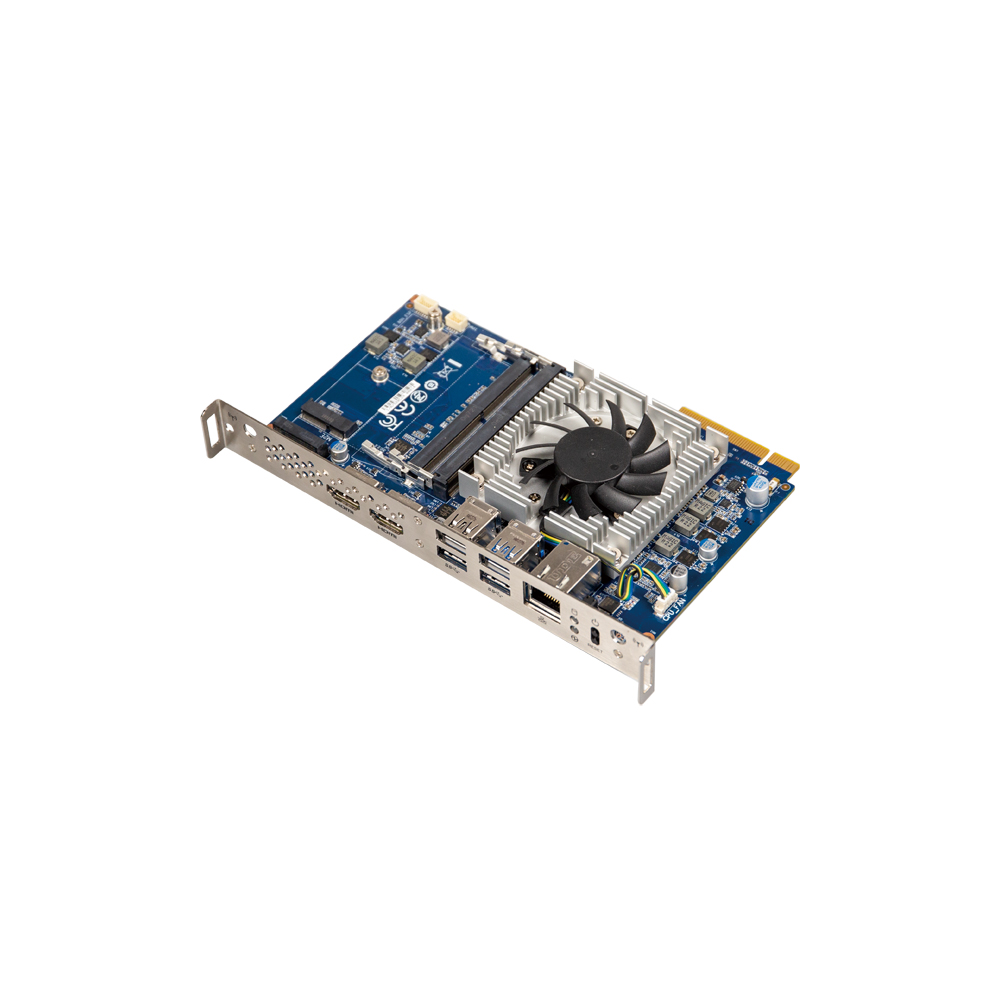

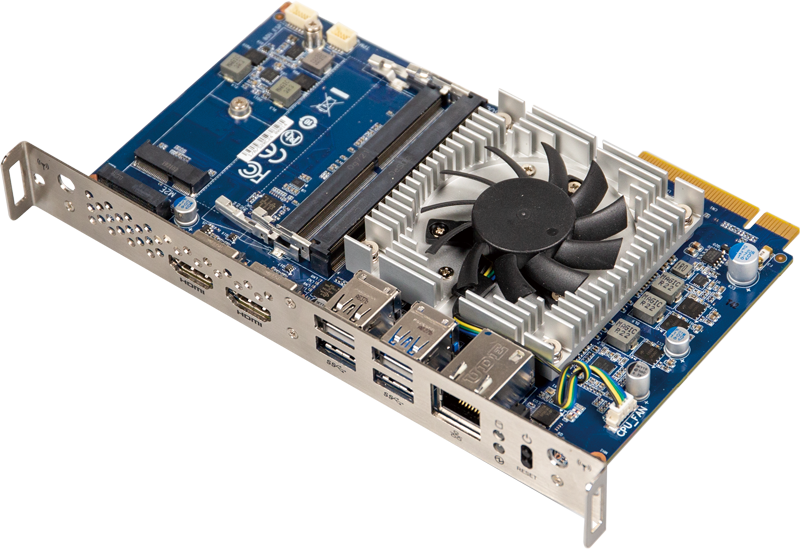

SDM-1115G4L
  • Intel® Smart Display Module with Intel® 11th Generation Core™ i3-1115G4 Processor
spec
Ordering Information
9MTGU3ALMR-SI (Box packing)
Key Features
  • Intel® Core™ i3-1115G4 Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 1 x GbE LAN Port
  • 3 x USB 3.2 Gen 1
  • 1 x USB 2.0
  • Environment : Operation 0°C to 55°C
  • Long life time support
  • Support 4K/60Hz, HDCP v2.2
Application
  • Digital Signage
  • Video Wall
  • Menu Board
  • Interactive Whiteboard

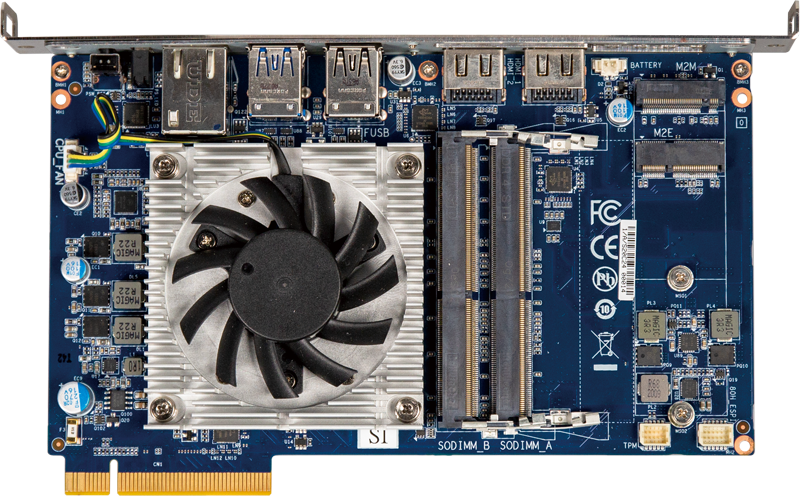

    SDM-1115G4L is the latest Intel® Smart Display Module (SDM) powered by 11th generation Intel® Core i3-1115G4 processor and Intel® Iris Xe Graphics to support 4 x display outputs up to 4K solutions on Interactive Whiteboard, digital signage, menu board, broadcasting display system...etc in smart retail market.

    It provides adequate I/O ports of 1 x GbE LAN Port, 3 x USB 3.2 Gen 1, 1 x USB 2.0 port, and enable choices of optional memory speed and capacity, various storage and WiFi module through M.2 connectors, and mostly important, 4 x 4K display outputs via 1 x HDMI, 1 x DP, and 2 x HDMI Ports in the rear I/O.  This all-in-one display module is perfect for SDM-complaint display monitor for space-limited environment, all you need to do is plug and play, easy installation as it is!!!  In case any hardware failure or upgrade request, it can be easily removed or replaced without any complicated process.  Users can also update media contents or software through Internet connectivity remotely to save time and costs.






















Specification


Form Factor

SDM-Large

175W x 100D(mm)

CPU

Intel® Core™ i3-1115G4 Processor

10nm SuperFin, 2 cores, 4 threads, up to 4.10 GHz

TDP 28W

Socket

1 x FCBGA1449

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB

Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

1 x GbE LAN Port (Intel® I219V)

Video

Integrated Graphics Processor - Intel® UHD Graphics:

1 x HDMI 2.0 (SDM), supporting a maximum resolution of 4096x2160 @60Hz

1 x Display Port (SDM), supporting a maximum resolution of 4096x2160 @60Hz

2 x HDMI 2.0 (Rear), supporting a maximum resolution of 4096x2160 @60Hz


(4 independent display outputs)

Audio

Intel® Integrated Audio

Expansion Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key

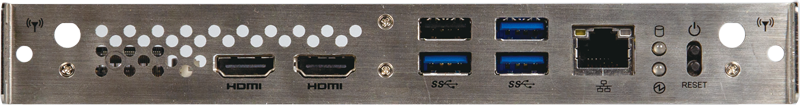

Rear I/O

2 x HDMI

1 x RJ45 LAN Port

3 x USB 3.2 Gen 1

1 x USB 2.0

1 x PWR LED

1 x HDD LED

2 x External Antenna Holes (Optional)

1 x Reset button

1 x Power button

TPM

1 x TPM header

OS Compatibility

Windows® 10 (x64)

Operating Properties

Operating temperature: 0°C to 55°C

Operating humidity: 0%-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Packing ContentCarton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.46kg

Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Order Information

9MTGU3ALMR-SI (Box packing)
