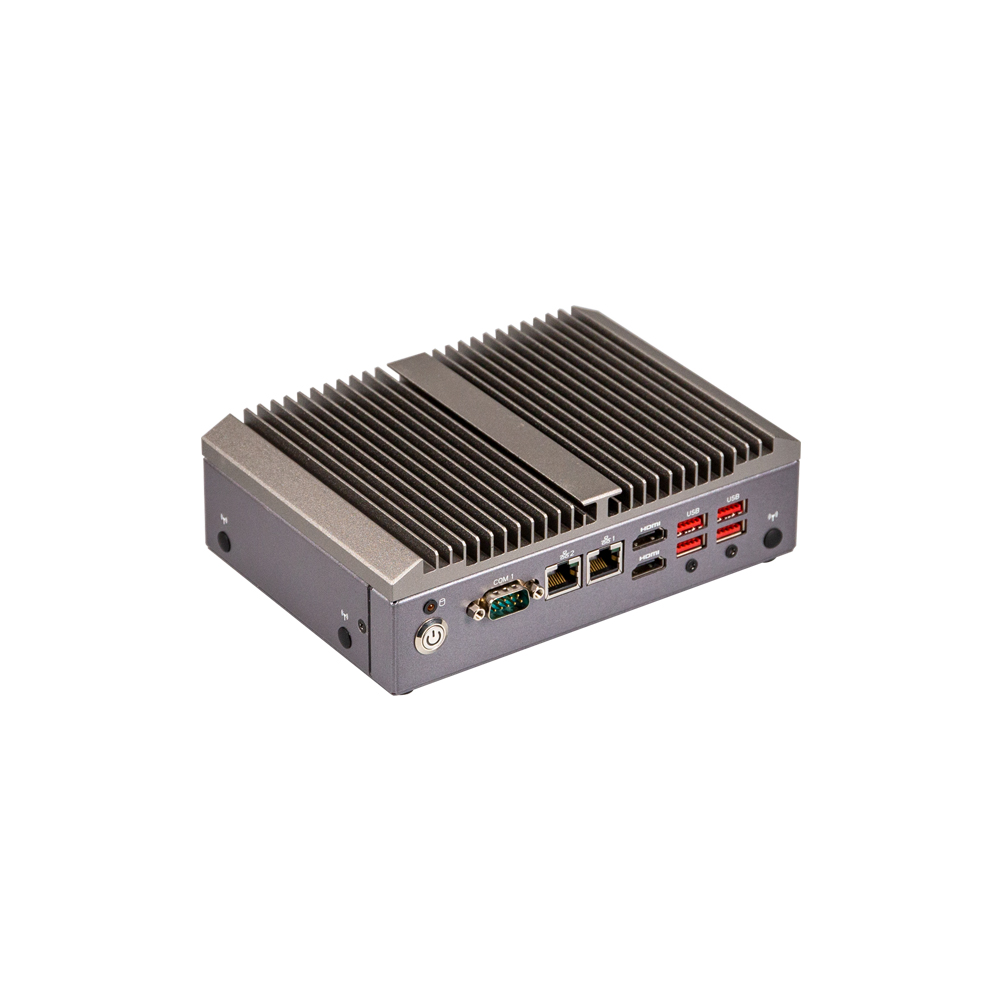

QBiX-Pro-TGLA1135G7H-A1
  • QBiX-Pro-TGLA1135G7H-A1
  • Industrial system with Intel® Core™ i5-1135G7 Processor/ Fanless Design / Dual Channel DDR4 up to 64GB/ 2 x HDMI
features
System Size : 178W x 125D x 52.7H (mm)
Intel® Core™ i5-1135G7 Processor
Dual Channel DDR4, 2 x SO-DIMMs
2 x HDMI for Dual display
2 x GbE LAN Ports
spec
Ordering Information
6BQP1135AMR-SI (Box Packing)



QBiX-Pro-TGLA1135G7H-A1 is bundled with GIGAIPC 3.5" SBC QBiP-1135G7B, powered by the onboard Intel® Core™ i5-1135G7 Processor.   It provides high-performance, power-efficient but low power consumption features.  This fanless embedded system can operate under wide temperatures ranging from -10°C to 50°C and pass industrial-grade standard of 50G shock and 5rms vibration. Moreover, it supports independent 4K Ultra HD displays via 2 x HDMI for multi-display applications.  This product is suitable for space-limited applications with highly strict performance requirements for industrial computers, control system and more.
Specification
Dimension178W x 125D x 52.7H(mm)
CPUIntel® Core™ i5-1135G7 Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz
ChipsetSoC
Memory2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Graphic SupportIntegrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)
AudioRealtek® Audio Codec
Storage1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion Slots1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Front I/O2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x COM Port (RS-232/422/485 & RI/5V/12V)
Rear I/O2 x USB 2.0
2 x COM Ports (RS-232/422/485)
1 x GPIO (8 bits)
1 x Headphone Jack
1 x 3-pin Terminal block
Side I/O2 x External Antenna Holes (Optional)
Power+9V~36VDC (Full Range)
Operation TemperatureOperating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During OperationOperation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During OperationOperation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging ContentCarton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 1.9kg

Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-070000-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
Order Information6BQP1135AMR-SI (Box Packing)
Optional KitTPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
