Embedded PC
더 나은 삶을 제공하고자 최선을 다하겠습니다.

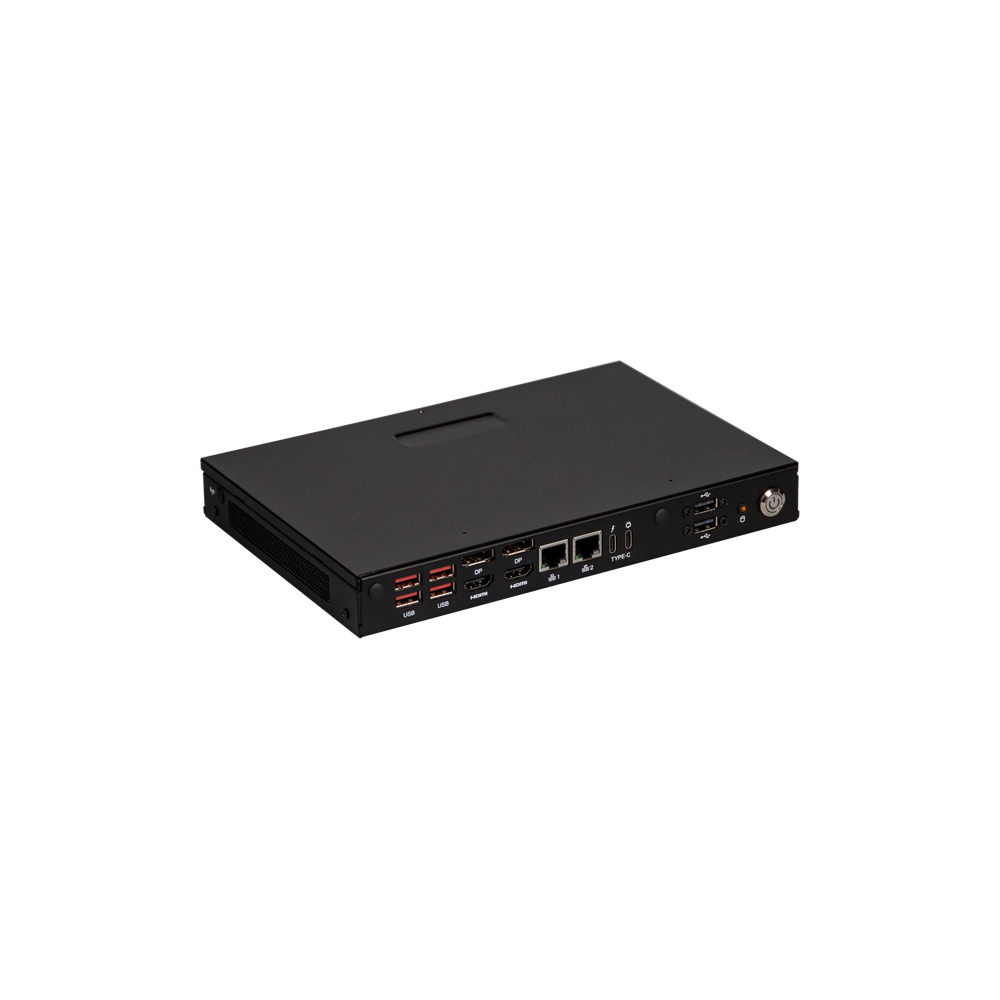

QBiX-Lite-TGLA1135G7-A1
  • Industrial system with Intel® Core™ i5-1135G7 Processor / Fan Design / Dual Channel DDR4 up to 64GB/ 2 x HDMI/ 2 x DP



Key Features
  • System Size : 234W x 155D x 30H (mm)
  • Intel® Core™ i5-1135G7 Processor
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x HDMI
  • 2 x Display Ports
  • 2 x GbE LAN Ports
  • 2 x USB Type-C Ports
Application
  • KIOSK / POS
  • Digital Signage
  • Menu Board / Video Wall







    Specification
    Dimension

    234W x 155D x 30H (mm)

    CPU

    Intel® Core™ i5-1135G7 Processor

    10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz

    Chipset

    SoC

    Memory

    2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB

    Support Dual channel DDR4 3200 MHz memory modules

    Ethernet

    2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)

    Graphic Support

    Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:

    2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @60Hz

    2 x DP 1.4 ports, supporting a maximum resolution of 7680x4320 @60Hz

    1 x DP 1.4 through USB type C (8k), supporting a maximum resolution of 7680x4320 @60Hz

    (4 independent display outputs)

    Audio

    Realtek® Audio Codec

    Storage1 x 2.5” HDD/SSD (SATA 6Gb/s)
    Expansion Slots

    1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)

    1 x 2230 M.2 E-Key

    1 x 3052 M.2 B-Key with SIM slot (Support 5G)

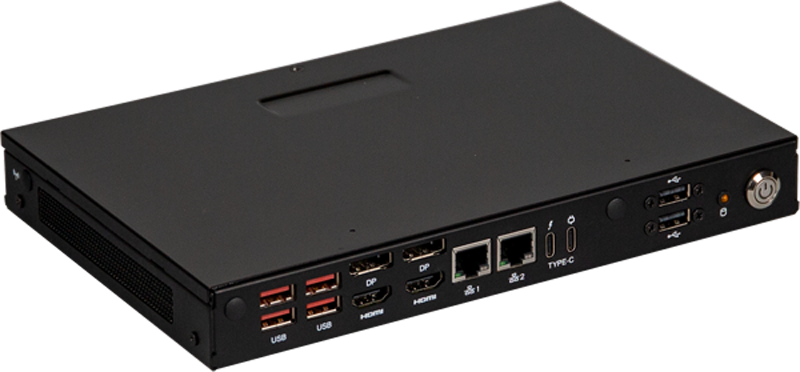

    Front I/O

    1 x USB type C (USB 3.2 Gen 2x1, DP Alt Mode & PD Out -30W)(-100W requests to use 250W adapter)

    1 x USB type C (USB 3.2 Gen 2x1, PD input-100W)

    4 x USB 3.2 Gen 2x1

    2 x HDMI

    2 x DP

    2 x RJ45 LAN Ports

    2 x USB 2.0

    1 x HDD LED

    1 x Power button with LED

    2 x External Antenna Holes (Optional)

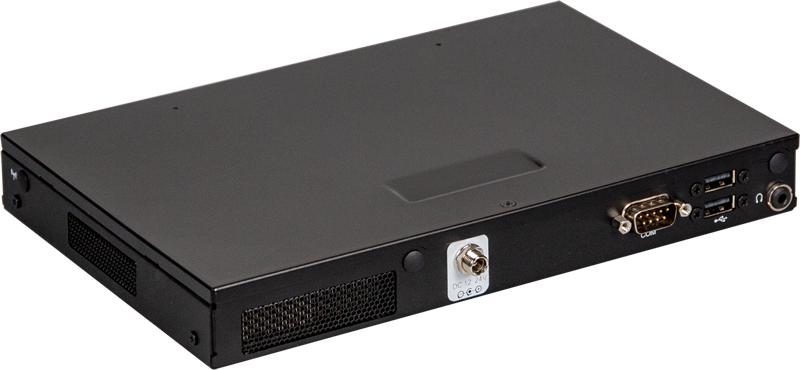

    Rear I/O

    1 x COM Port (RS-232)

    2 x USB 2.0

    1 x Headphone Jack

    1 x Screw type DC Jack

    2 x External Antenna Holes (Optional)

    Side I/O

    1 x External Antenna Hole (on each side)

    TPM

    —

    Power+12V~24VDC (Adapter 19.5V/135W)
    Operation Temperature

    Operating temperature: 0°C to 50°C

    Operating humidity: 0-90% (non-condensing)

    Non-operating temperature: -40°C to 85°C

    Non-operating humidity: 0%-95% (non-condensing)

    Use wide temperature range memory and storage

    Vibration During Operation

    Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242

    Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

    Shock During Operation

    Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

    Packaging ContentCarton size: 481 x 300 x 375 (mm)
    Packing Capacity: 5pcs

    Single Box size: 336 x 279 x 90 (mm)

    Including:
    Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R
    Screws for Wall Mount x 4 : 25KS9-130600-S0R
    PSU ADP 19.5V 135W 100-240VAC x 1 : 25EP4-201352-C1S
    Power Cord : Optional (by region)
    Thermal Pad for Memory x 1 : 25ST3-200086-T5R
    SATA Cable x 1 : 25CRI-180002-S9R
    Screws for 2.5” HDD x 8 : 25KS2-13004G-S0R
    Mounting

    Wall mount (Default)

    VESA 75/100 (Optional)

    Order Information

    6BQL1135AMR-SI (Box packing)
