PPC / Kiosk / DID
더 나은 삶을 제공하고자 최선을 다하겠습니다.
spec
Ordering Information
6BPSH310AMR-SI (Box packing)
Key Features

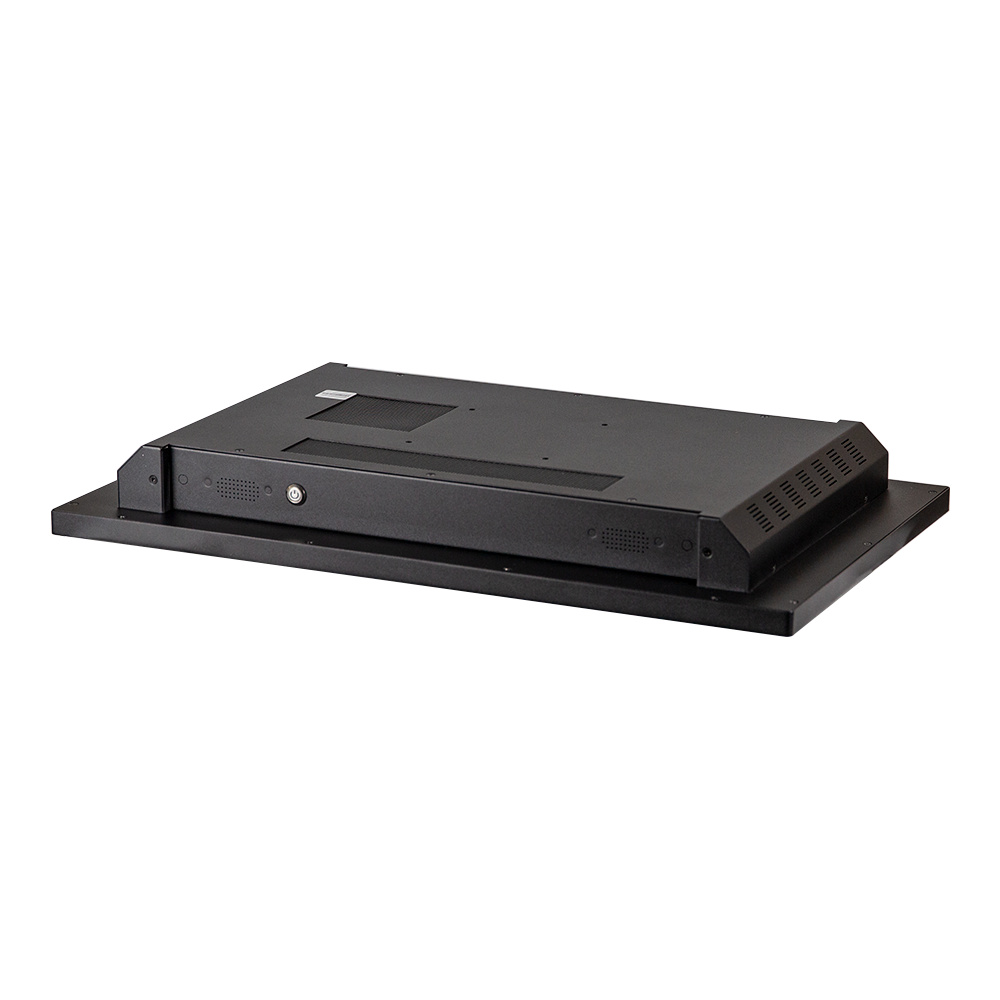

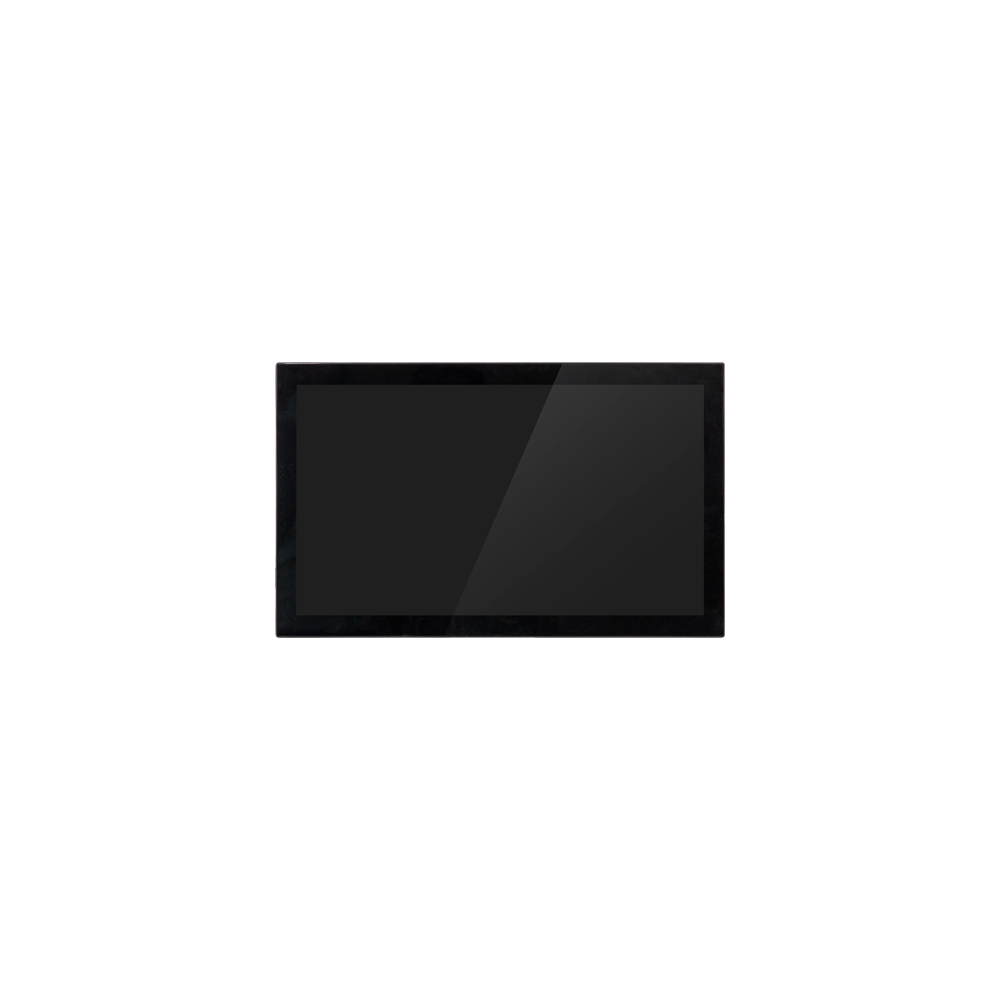

- 21.5’’ Industrial Panel PC system
- 10 points, Projected capacitive touch screen
- Intel® H310 Express Chipset
- Dual Channel DDR4, 2 x SO-DIMMs
- Long life time support
- Support VESA mount 100 x 100mm
Application
- Factory Automation
- Industrial PC
SpecificationDimension 524.8W x 61.8D x 320.8H (mm) Motherboard mITX-H310A LCD Display Type : 21.5” TFT LCD panel
Resolution : 1920 x 1080
Brightness : 250 cd/m^2
View angel : 160°/178° (H), 160°/178° (V)
Contrast Ratio : 3000:1
Response time : 25 ms
Backlight lifetime : 40,000 hrsTouch screen Type : 10 points, projected capacitive
Viewing Area : 477.64L x 269.11W
Active Area : 476.06L x 267.79W
Surface Hardness : >=3H
Transparency : >85%CPU Support for 9th/8th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 35WMemory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2666/2400 MHz memory modulesEthernet 2 x GbE LAN Ports (Intel® I219V & Intel® I211AT) Expansion Slots 1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)

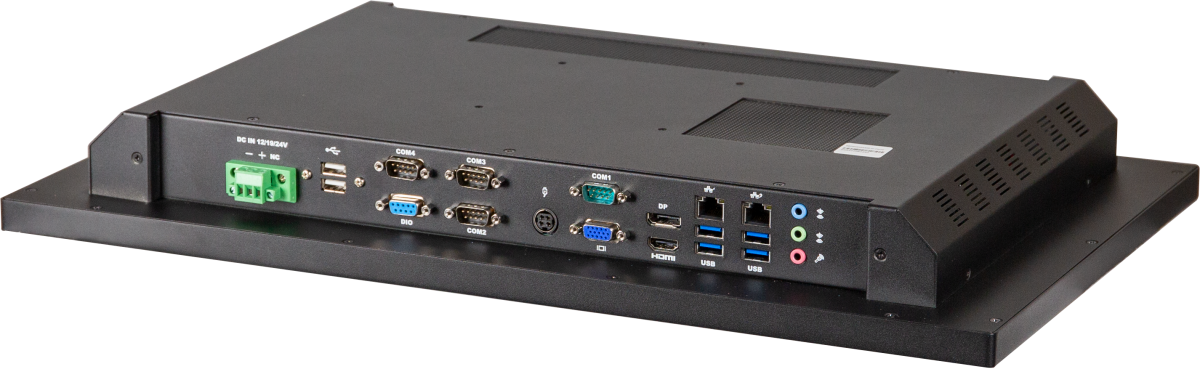

1 x 2230 M.2 E-Key (WiFi/BT)I/O 3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
3 x COM Ports (RS-232/422/485)
1 x 3-pin Terminal Block
1 x HDMI
1 x Display Port
1 x VGA
1 x GPIO (8 bits)
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Power button with LEDStorage 2 x 2.5’’ HDD/SSD Speaker 2 x 2W speaker Power +12V/+19V/+24VDC Operation Temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storageVibration During Operation Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per AxisPackaging Content Carton size: 625 x 424 x 188 (mm)
Packing Capacity: 1pc
Single Box weight: Approx. 9kg
Including:
Screw for 2.5" HDD M3x4L x 8 (P/N: 25984G-1C014-S00)
CPU Cooler x 1 (P/N: 25ST0-538784-Y0R)Shock During Operation Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD Order Information 6BPSH310AMR-SI (Box packing)
