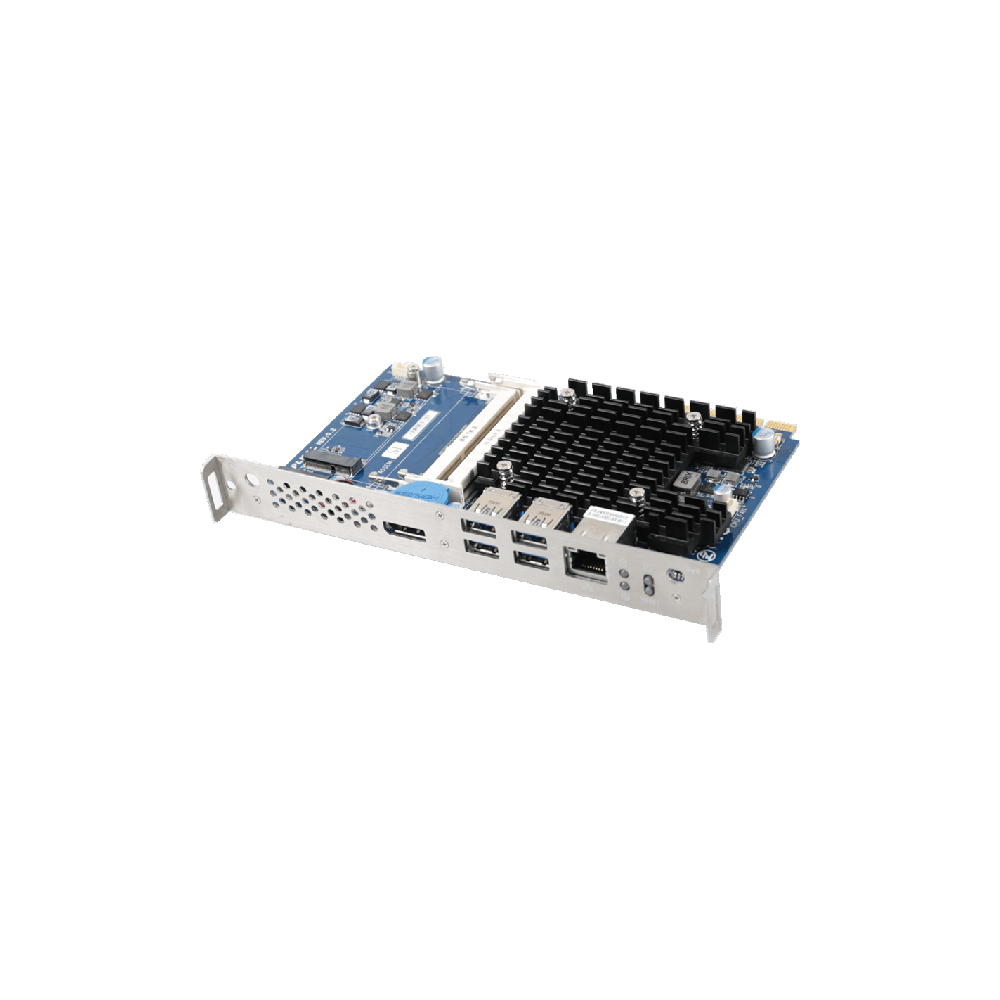

SDM-3350L-QV
  • Intel® Smart Display Module with Intel® Celeron® N3350 Processor, Fanless Design and 3 Independent Display Output
spec
Ordering Information

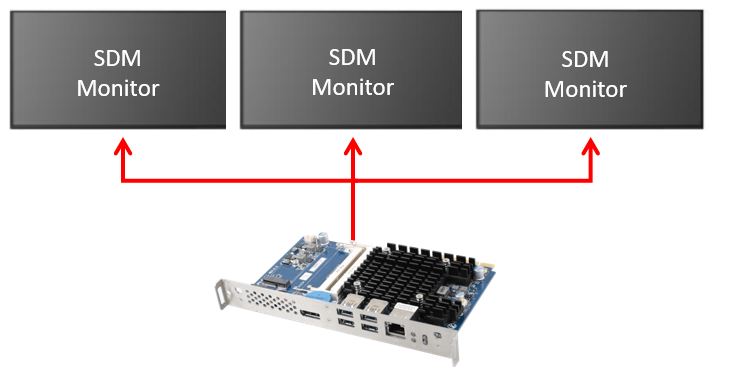

As display panels become thinner and power-effecient with high performance, Intel® is presenting Smart Display Module (SDM), it's almost one-third size of OPS, but still an all-in-one integrated board with full computing capability and scalability powered by Intel® Celeron® N3350 processor and Intel® HD Graphics 500 chipset.   SDM-3350L-QV supports 3 independent display output of 1 x HDMI and 2 x Display Port up to 4K resolution as well as 4 x USB 3.2 Gen 1 for various peripheral connections.

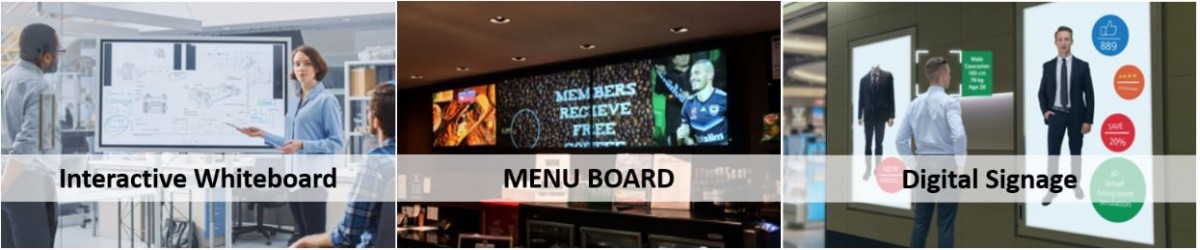

Its form factor without enclosure brings the benefit of cost-effective on total solution design and integration flexibility to meet space-limited requirement.  It can be built in or externally plugged into a display panel to work mainly for commercial and retail markets, such as Interactive Whiteboard, menuboard, video wall, KIOSK and digital signage, etc.   The end user can update software content from remote location, and furthermore, quickly remove and replace SDM for maintainance or hardware upgrade purpose to save CAPEX and OPEX.2084164872_C9fkE2KH_30768bccd0c385efac99d40f2c843f8c8f3d89b3.JPG
​
Specification
Form Factor

SDM-Large

175W x 100D(mm)

CPU

Intel® Celeron® N3350 Processor

14nm, 2 cores, 2 threads, up to 2.4 GHz

TDP 6W

Socket

1 x FCBGA 1296

Memory

2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB

Support Dual Channel DDR3L 1866 MHz memory modules

Ethernet

1 x GbE LAN Port (Realtek® RTL8111HS)

Video

Integrated Graphics Processor -Intel® HD Graphics 500:

Support SDM interface: HDMI & DP (FHD)

Rear IO: DP (FHD)

1 x HDMI 1.4 port (SDM), supporting a maximum resolution of 3840x2160 @30Hz

2 x DP port (Rear/SDM), supporting a maximum resolution of 1920x1080 @30Hz

(3 independent display outputs)

Audio

Intel® Integrated Audio

Storage

1 x eMMC 32GB

Expansion Slots

1 x 2280 M.2 M-Key (SATA 6Gb/s)

1 x 2230 M.2 E-key (WiFi/BT)

Rear I/O

1 x Display Port

1 x RJ45 LAN Port

4 x USB 3.2 Gen 1

1 x PWR LED

1 x HDD LED

2 x External Antenna Holes (Optional)

1 x Reset button

1 x Power button

OS Compatibility

Windows 10 (x64)

Operating Properties

Operating temperature: 0°C to +55°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to +85°C

Non-operating humidity: 0%-95% (non-condensing)

Packing ContentCarton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.46kg

Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)
Order Information

9MAPLKALMR-SI (Box packing)
