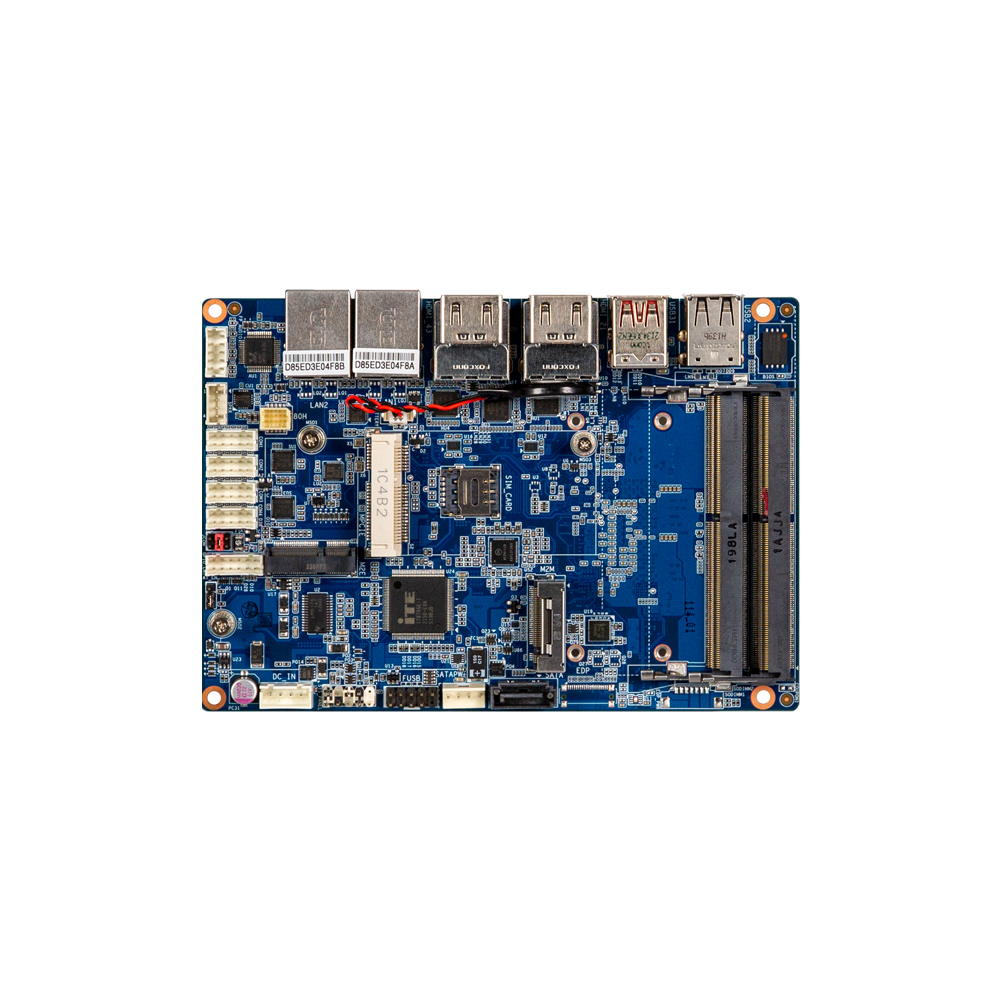

GIGAIPC QBIP-2718A
  • QBiP-2718A
  • 3.5” SubCompact Embedded Motherboard with AMD Ryzen™ V2718 Embedded Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 6 x USB
features
3.5’’ SBC
AMD Ryzen™ V2718 Embedded Processor
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN Ports
1 x SATA 6Gb/s Port
M.2 with SATA 6Gb/s or PCIe x4
4 x HDMI 2.1 ports for multiple display
3 x COM Ports (RS-232/422/485)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
spec
Ordering Information
9MRZV2MSMR-SI (Box Packing)



Specification
Form Factor3.5" SBC
146W x 101.7D(mm)
CPUAMD Ryzen™ V2718 Embedded Processor
7nm, 8 cores, 16 threads, 1.7 GHz, up to 4.15 GHz
TDP 25W
Socket1 x FP6 BGA
Memory2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules
Ethernet2 x GbE LAN Ports (Realtek® RTL8118-CG)
VideoIntegrated Graphics Processor - AMD Radeon™ Graphics:
4 x HDMI 2.1 ports, supporting a maximum resolution of 4096x2160 @144Hz

(4 independent display outputs)
AudioRealtek® Audio Codec
Storage1 x SATA 6Gb/s Port
Expansion Slots1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module
Internal I/O1 x 4-pin box power connector (DC in +9V~48VDC)
1 x SATA Power header
1 x CPU fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
2 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
Rear I/O4 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 2.0
TPM1 x TPM header (LPC)
OS CompatibilityWindows 10 (x64)
Operating PropertiesOperating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing ContentCarton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)

Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information9MRZV2MSMR-SI (Box Packing)
Optional KitFansink P/N: 12SF2-01A091-00R
Heat spreader P/N: 25ST5-111500-Y0R
TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
