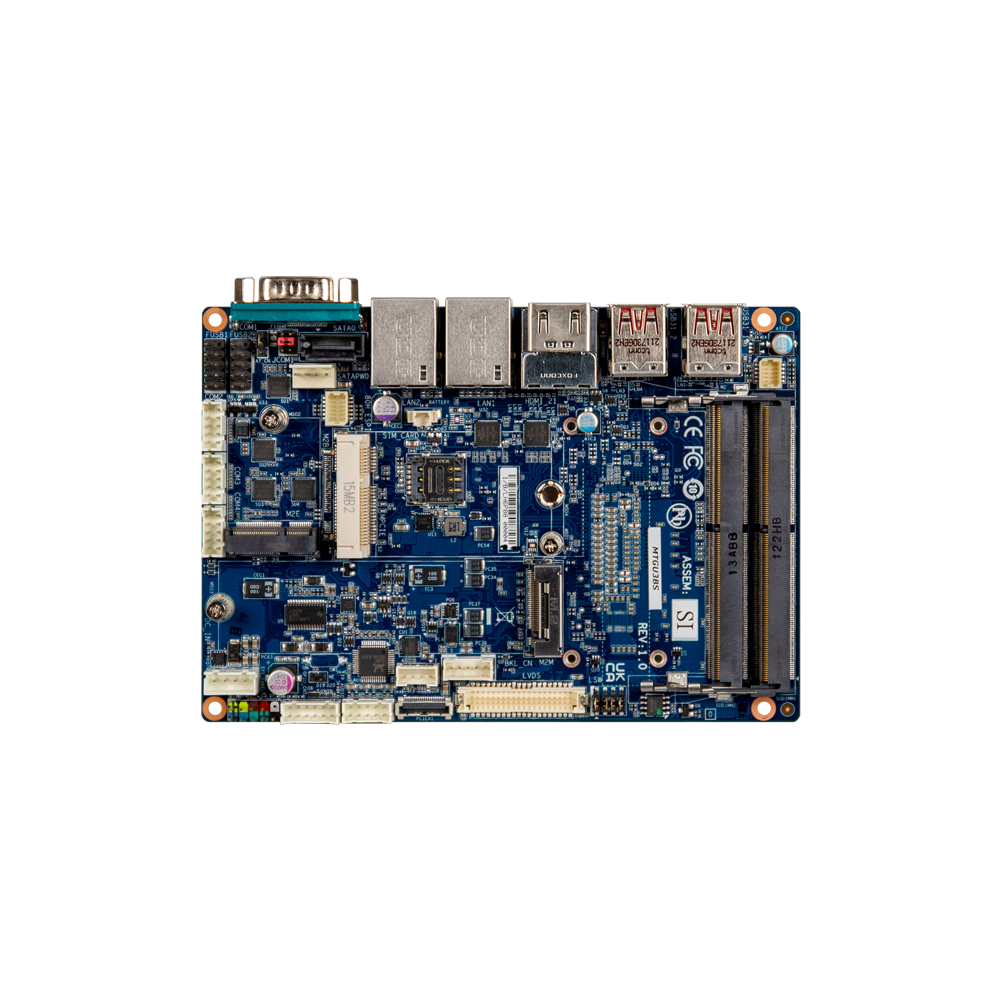

GIGAIPC QBIP-1145G7EB
  • QBiP-1145G7EB
  • 3.5” SubCompact Board with 11th Generation Intel® Core™ i5-1145G7E Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0
features
3.5’’ SBC
Intel® Core™ i5-1145G7E Processor with vPro support
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN Ports
1 x SATA 6Gb/s Port
Ultra-Fast M.2 with PCIe Gen3 x2 interface
2 x HDMI, LVDS ports for multiple display
1 x COM Port (RS-232/422/485 & RI/5V/12V)
3 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen 2x1
spec
Ordering Information
9MTGU5DSMR-SI (Box Packing)



Specification
Form Factor3.5" SBC
146W x 101.7D(mm)
CPUIntel® Core™ i5-1145G7E Processor
10nm SuperFin, 4 cores, 8 threads, up to 4.1 GHz
vPro support, TDP 28W
8 MB Smart Cache
Socket1 x FCBGA1449
Memory2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT)
VideoIntegrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz

(3 independent display outputs)
AudioRealtek® Audio Codec
Storage1 x SATA 6Gb/s Port (SATA RAID 0/1)
Expansion Slots1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot
1 x PCIe x1 (Board to Wire connector, PCIe Gen3 x1)
Internal I/O1 x 4-pin box power connector (DC in +9V~48VDC)
1 x SATA Power header
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
3 x COM headers (RS-232/422/485)
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x GPIO (8-bits) & SMBus header
1 x SPI header
Rear I/O1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x HDMI
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 2x1
TPM1 x TPM header
OS CompatibilityWindows 10/11 (x64)
Operating PropertiesOperating temperature: 0°C to +60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing ContentCarton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.4kg

Including:
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Order Information9MTGU5DSMR-SI (Box Packing)
Optional KitFansink P/N: 25ST4-113101-A7R
Fanless sink P/N: 25ST1-1Z3101-AFR
Heat spreader P/N: 25ST5-111500-Y0R
TPM 2.0 module P/N: 9CTM010NR-00
TPM Cable P/N: 25CRZ-100600-S9R
